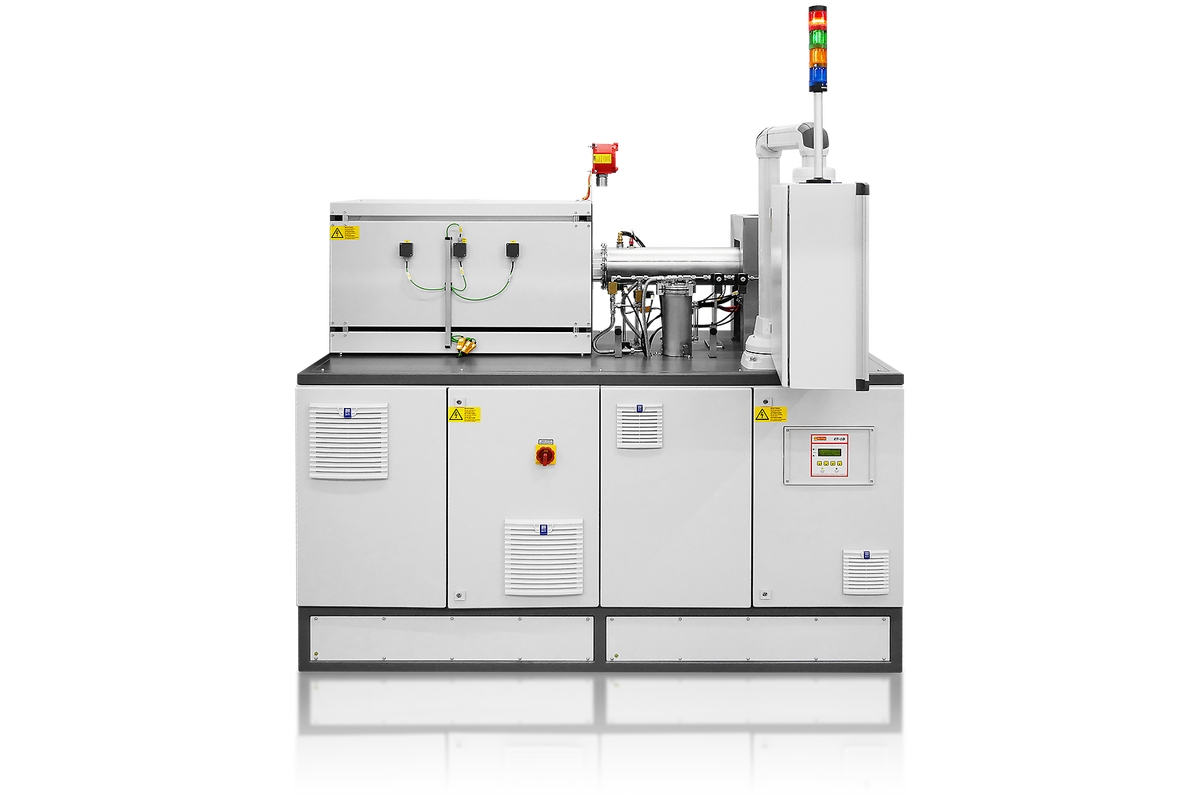

IQ-O (Open) Quartz Tube Quench System

IQ-O (Open) – Quartz Tube Quench System
联系我们报价详情

The IQ-O is a robust quenching system for heat treatment under a controlled atmosphere. The system is based on a quartz glass tube with a water-cooled section and enables flexible, manual quenching processes, even while the system is in operation.

总览 Possible configurations

最高温度
1100 °C,  1200 °C		炉体 Ø
120  mm
加热长度(s)
500 mm		控温区数量
3 zones

OPERATING PRINCIPLE

The sample is located inside a quartz glass tube divided into a heated zone and a cooled section.

The sample is moved manually using a mechanical guide through the open gas outlet. This allows the sample to be moved along the axis of the quartz glass tube between the heating and cooling zones and positioned precisely.

This arrangement enables the sample to be moved repeatedly between both zones. Multiple heating and quenching cycles can therefore be carried out under defined conditions without removing the sample from the system.

  • Transition from quartz glass to a double-walled, water-cooled stainless-steel tube
  • Metal base plate
  • Open feedthrough and open gas outlet
  • Flap with pneumatic locking mechanism
  • Ceramic insulation
  • Cascaded thermocouples

KEY BENEFITS

  • Consistent atmosphere throughout the entire process, including both the heating and quenching zones
  • Manual sample loading possible after the process temperature has already been reached
  • Repeated heating and quenching cycles possible
  • Safety sytem for 100% H2 availiable
