IQ-L (Liquid) Vertical Quench System

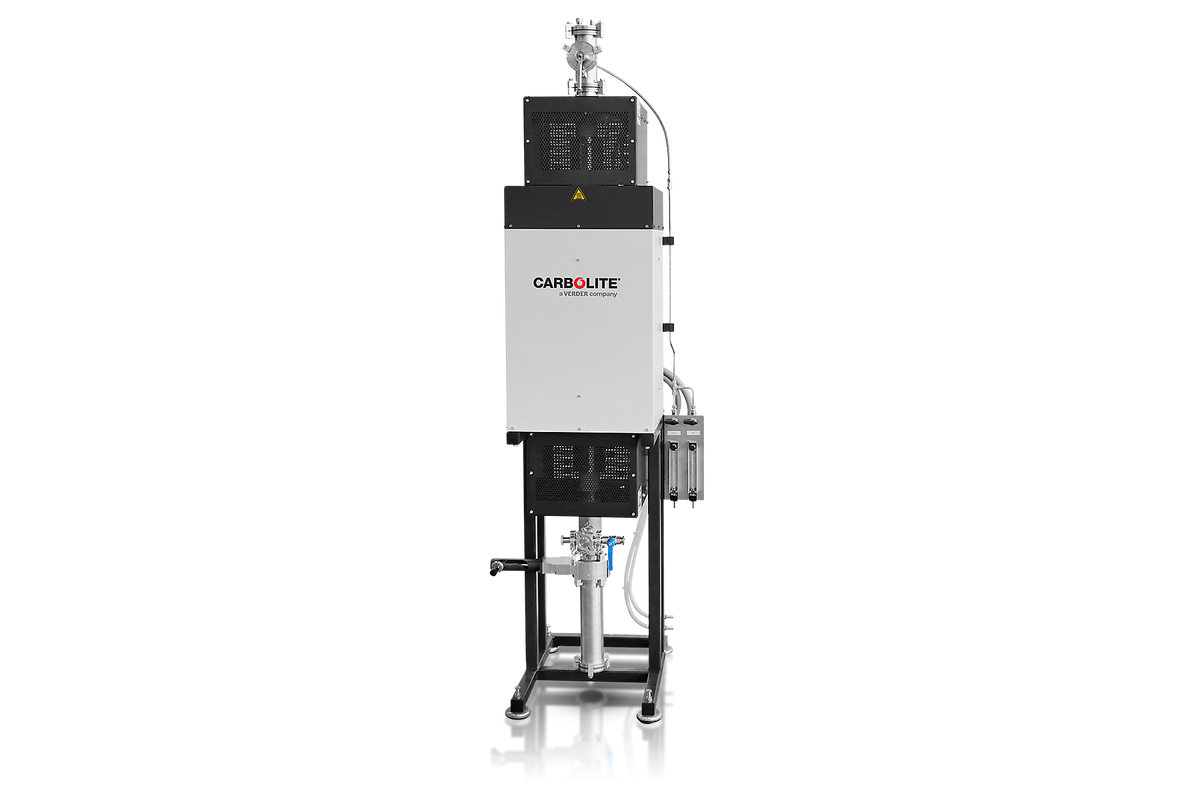

The IQ-L is a vertically designed system in which the sample is quenched by lowering it into a quenching medium.
| 最高温度 1300 °C, 1600 °C, 1700 °C, 1800 °C | 炉体 Ø 50, 60, 70, 80 mm |
| 加热长度(s) 250, 500, 750 mm | 控温区数量 1 and 3 zones |
1. Positioning and Heating

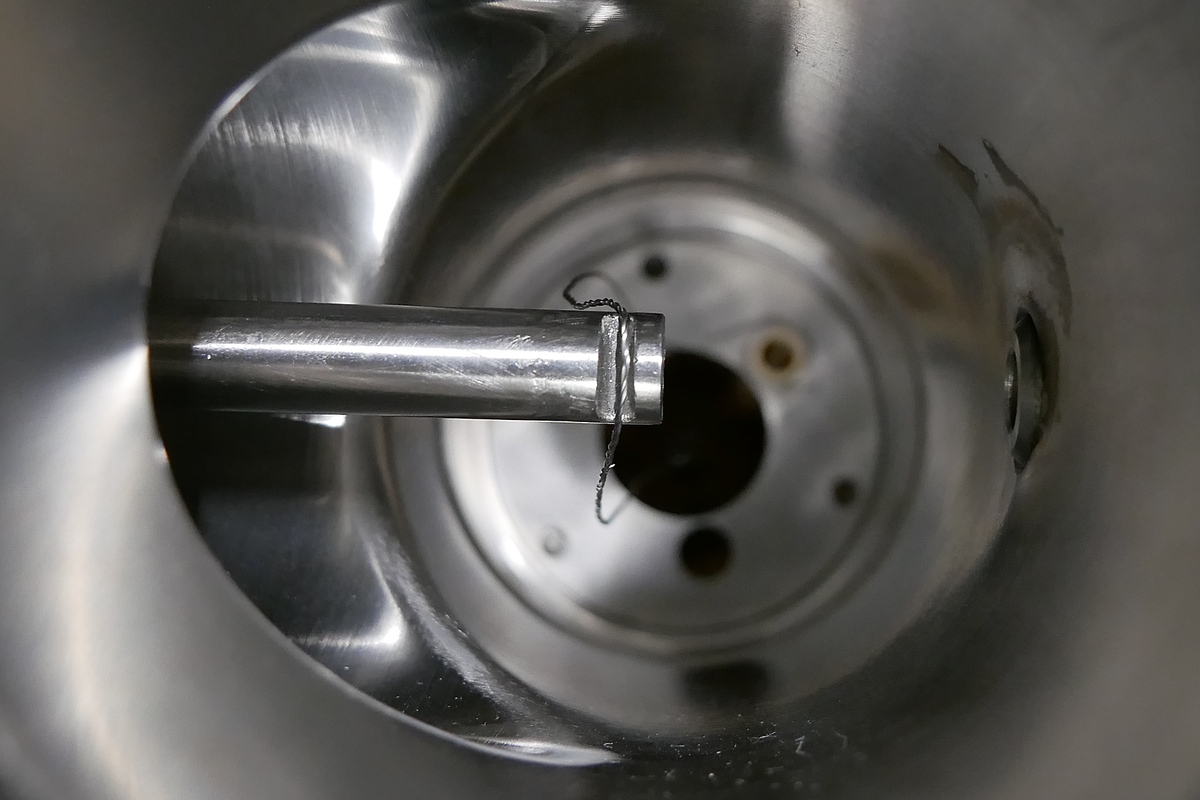

The sample is positioned centrally inside the ceramic work tube using a wire attached to a hook. In this initial position, the heat-treatment process begins under a defined atmosphere.
2. Separation of the Heating and Quenching Zones

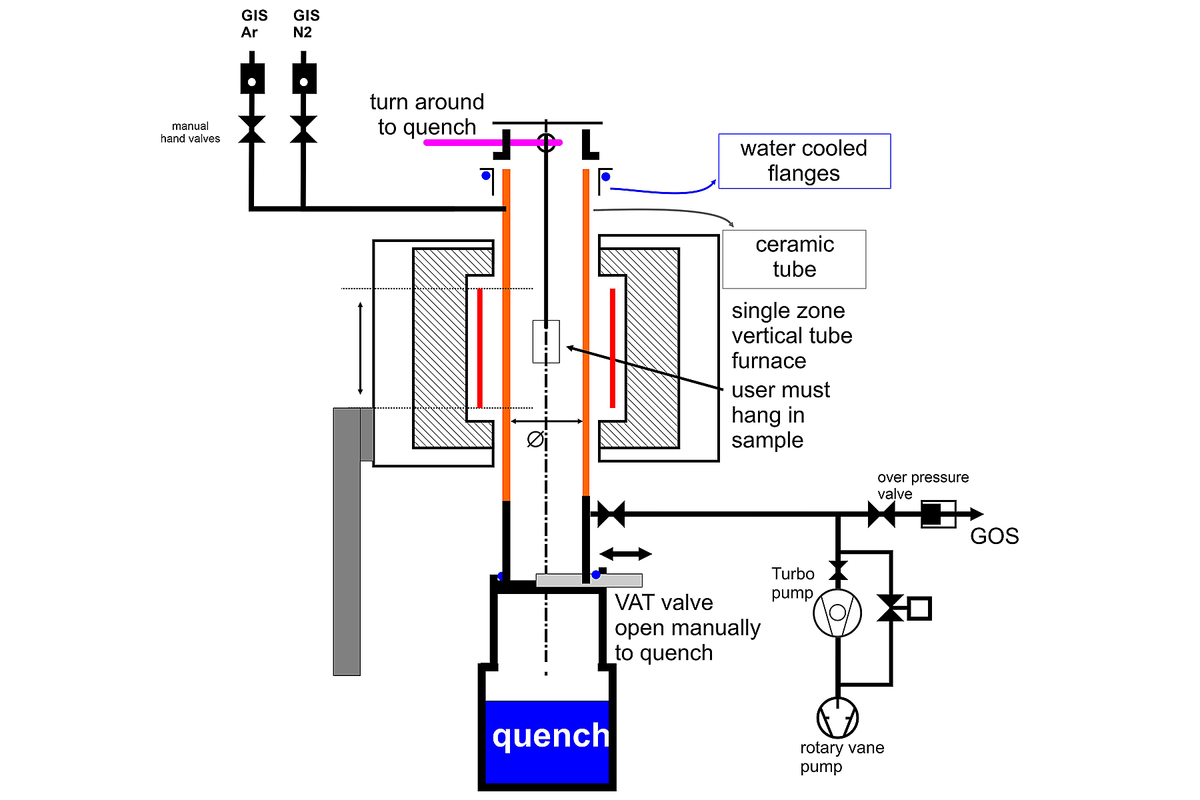

The quench tank is located below the heating zone and is separated from it by a manually operated valve.
3. Activation of the Quenching Mechanism
Once the heat treatment is complete, the valve is opened to provide access to the quenching zone.

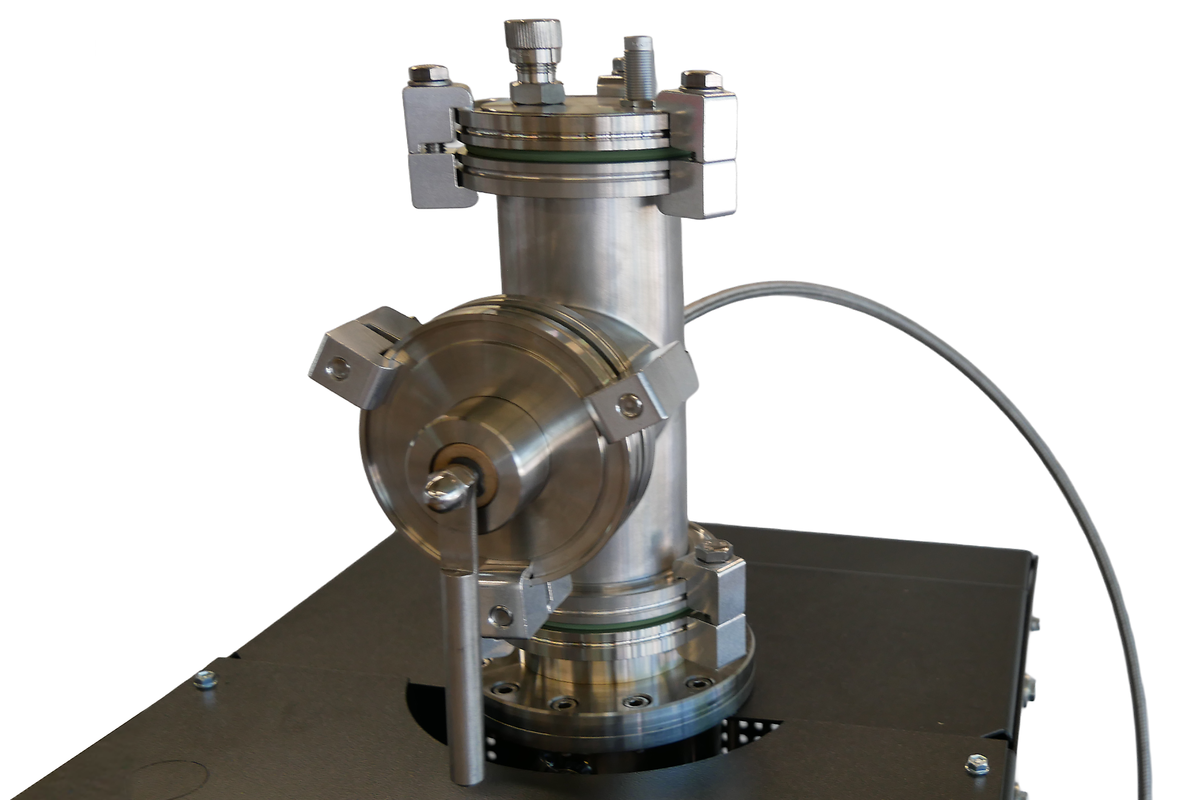

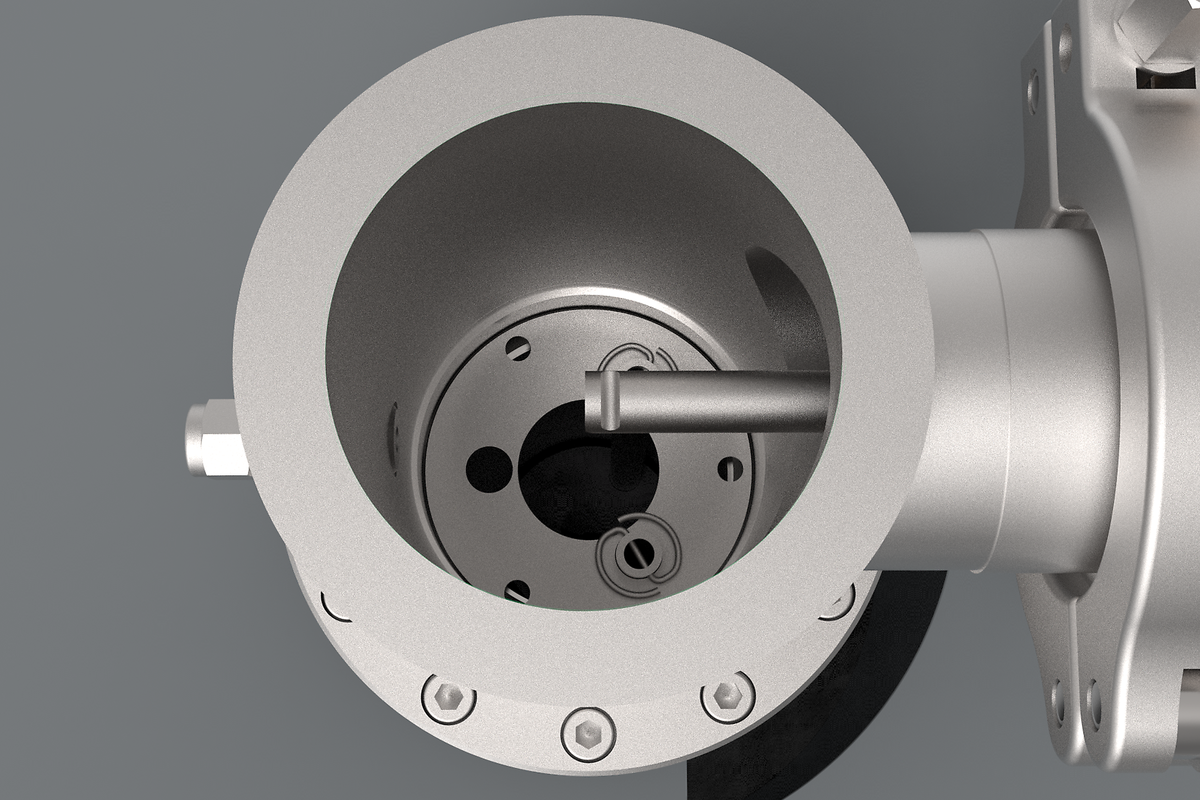

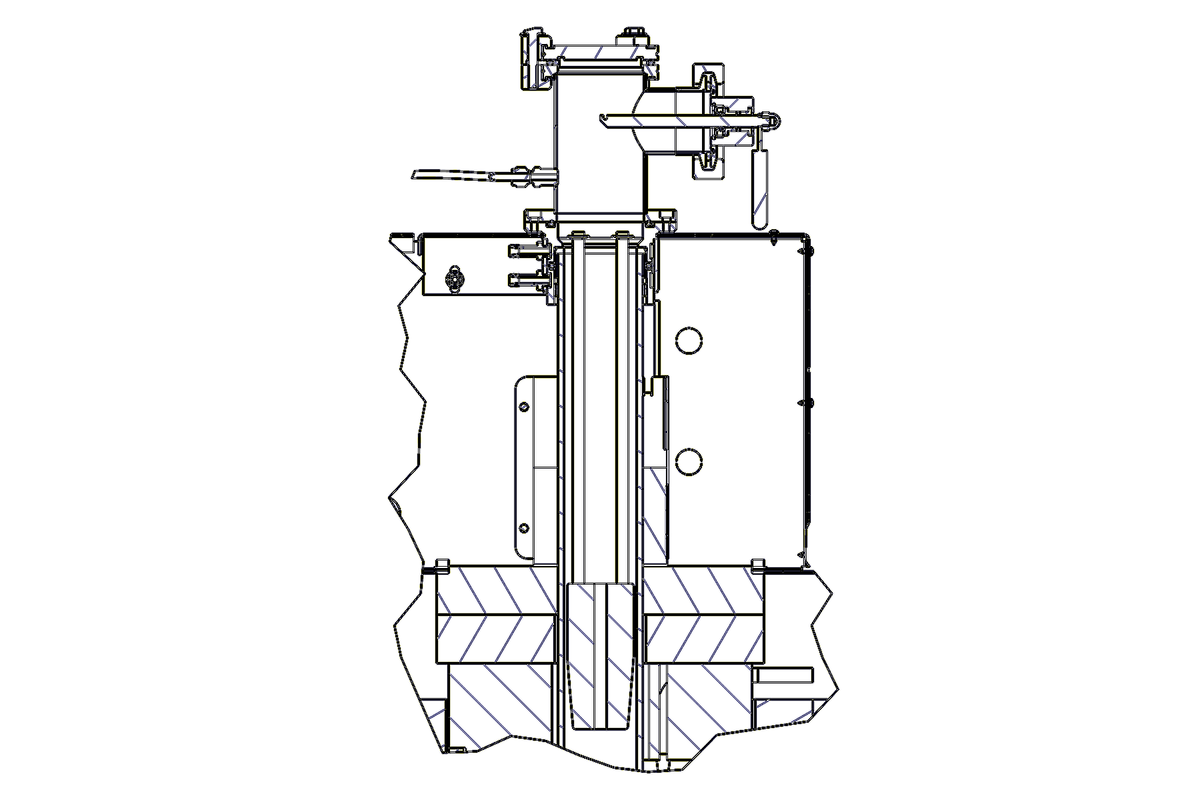

The suspension wire is attached to a hook by means of an eyelet. The hook is connected to a rotating mechanism. Manually rotating the hook by 180° releases the eyelet, allowing the sample and suspension wire to drop into the quenching zone.

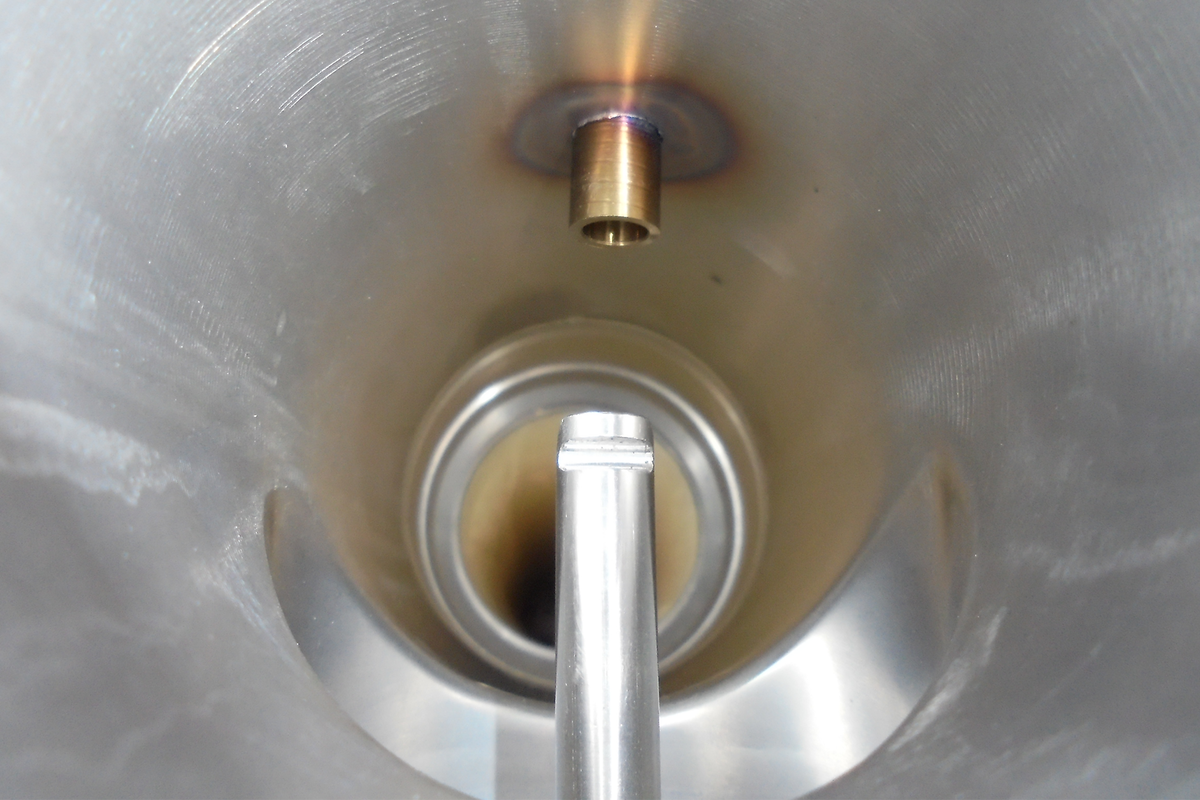

4. Quenching in the Quench Tank
The sample falls directly into the quenching zone, where it is rapidly cooled in a defined, customer-specific medium.
The sample is positioned in the center of the furnace's heated zone and suspended from a wire attached to the release mechanism. By manually rotating the release hook, the operator initiates the drop, allowing the sample to fall rapidly into the quenching fluid below.
